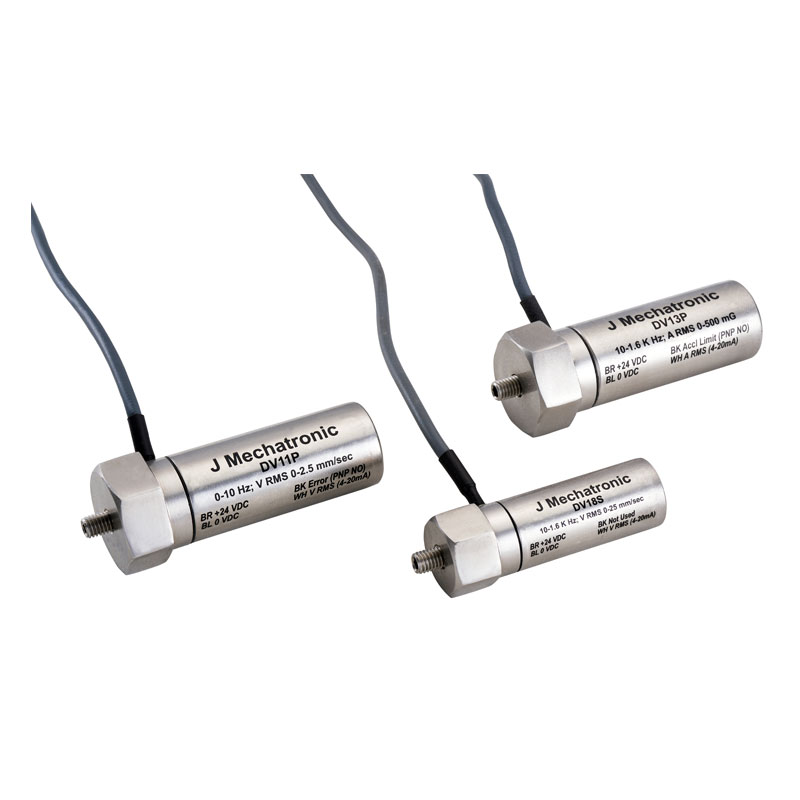

JM Vibro is an innovative vibration sensor with a unique built-in intelligence, developed by leading Vibration Sensor Manufacturers in India. The intelligence lies in the ability to accurately detect and measure low range frequencies in low speed applications. JM Vibro has been designed to monitor specific industrial applications. Both velocity and acceleration can be measured as per the specific application requirement.
| Type Code | DV11P | DV13P | DV18S |
|---|---|---|---|
| Mounting Hole/Accessory | M8x1.25, 10 deep, M8 stud 20mm long | M8x1.25, 10 deep, M8 stud 20mm long | M8x1.25, 10 deep, M8 stud 20mm long |
| Frequency Range | 0-10 Hz | 0-1.6 KHz | 0-1.6 KHz |
| Parameter Monitored | Velocity RMS | Acceleration RMS | Velocity RMS |
| Output 1 Function | Error Output ON if analogue value remains stable within 1% for more than 3 Sec continuously | Acceleration Limit voltage Output ON at set Limit value 1000 mG | -Not Used- |
| Output 1 Switching | PNP, NO, 100 mA | PNP, NO, 100 mA | -Not Used- |
| Output 2 Parameter Range** | 0-2.5 mm/Sec | 0-500 mG | 0-25 mm/sec |
| Output 2 Analogue | 4-20 mA (500 Ohm max) | 4-20 mA (500 Ohm max) | 4-20 mA (500 Ohm max) |
| Operating Voltage (V DC) | 20-30 | ||
| Current Consumption (mA) | 50 | ||
| Protection Class | III | ||
| Reverse Polarity / Short Circuit Protection | Yes | ||
| Operating Temperature (°C) | 0-60 (32°F-140°F) | ||
| Housing Material | Stainless steel | ||
| Electrical Connection | 5 m Long, 4 Core cable (Brown to +24VDC; Blue 0 VDC, Black Output1, White Output2) | ||
| Protection Class | IP65 | ||
| Dim. D1/H1/H2/HEX D2 mm | 32 / 87 / 10 / 34 | 32 / 87 / 10 / 34 | 24 / 72 / 10 / 26 |
**Special types for other parameter ranges available on request
Motor Vibration Monitoring Sensor
Pump Vibration Monitoring Sensor
Blower Vibration Monitoring Sensor
Conveyor Belt Vibration Monitoring
Industrial Pulley Condition Monitoring
Bearing Vibration Monitoring System
Our vibration monitoring sensor is competitively priced.
Vibration and temperature.
With Velocity based vibration sensors.
For monitoring BEARING CONDITION, GEAR TOOTH BREAKAGE, IMPACT VIBRATIONS.
Vibrations and Temperature are 2 parameters with which almost 55% of machine defects can be monitored !
Temperature
For monitoring IMBALANCE. For example: Fans, Blowers, Slowly rotating pulleys etc.
Radial direction to bearing axis.
