Best Human Presence Sensor Manufacturers in India

Best Human Presence Sensor Manufacturers in India

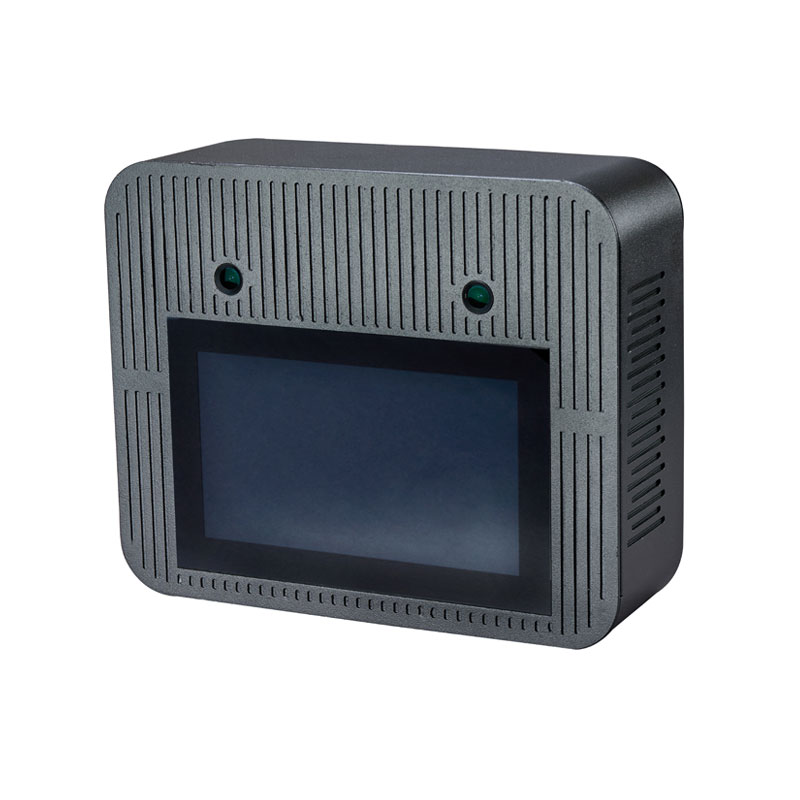

Product Name: JM AI based Human Detection

JM AIHD is an innovative AI-based human detection vision system developed by leading Human Presence Sensor Manufacturers in India. It is a revolutionary Edge AI-based unit focused on solving the problem of potential loss of human lives in areas and applications where human detection is extremely critical. This AI-enabled unit is designed to enhance real-time transparency and traceability in industrial processes, helping protect humans from potential hazards in diverse industrial conditions and ultimately saving lives.

Buy our Product

Please fill the below details and our team will contact you as soon as possible

    Get in Touch

    Advantages of our Human Presence Sensor

    • Our unit has 2 built-in cameras increasing redundancy and reliability for human detection.
    • Creates time and date stamped human detected images enabling higher accuracy for real-time monitoring and accident prevention.
    • Stores multiple human detected images as a historical record creating transparency for further prevention of downtime.
    • Initiates e-mail alerts to multiple users with machine and location details enhancing traceability.
    • Absence of any moving element inside the unit ensures robust operation.
    • Has built-in HMI enhancing user-friendliness for user-setting and saving additional cost involved in external display, monitor.
    • Has 2 built-in relay outputs ensuring direct integration with any kind of field devices like PLC, networked hardware.
    • Can be installed by any technician without demanding any special hardware (or) IT skills for installation saving potential extra installation costs involved.
    • Works on AI based Human feature detection
    • Has multiple outputs for machine interface (machine PLC , Tower light etc)
    • Has fool proofing outputs (misorientation output, camera failure output, power failure output)
    • Can store 4000+ detection images with time stamp; images accessible through Ethernet
    • Has Json output
    • This is not a motion sensor & This is not an infra red sensor.

    Technical Specifications of Human Presence Sensor

    Type No.JMHDS001
    Number of cameras2
    Field of view (FOV)135°(D) 95°(H) 70°(V)
    Focus TypeAuto Focusing
    Detection Range for Humans approx. (Meters)5
    Image resolution Static (Pixels)2592 × 1944
    Response Time (m Sec)150
    Ambient Light Condition Minimum (Lux)100
    Supply Voltage (VDC) Ripple Free22 to 26
    Current Consumption (Amp)4
    Output Relays2 No SPDT Relays, 250VAC/24VDC, 10 Amp Max.
    Overall Dimensions(L) 245mm × (W) 77mm × (H) 200mm
    Mounting typeDIN-Rail
    Weight (gm)2600
    IP RatingIP20
    Operating Temperature0 to 50 °C
    Sensor Settings (through on screen menu)Height of human to be Sensed | Area of interest | Probability of human Sensing
    Display Specifications7.0″ Inch | Aspect Ratio: 16:9 | Resolution: 1024 × 600

    Applications of AI-Based Human Detection System in Industries

    Human Detection for Automotive Assembly Lines

    Presence Monitoring in Industrial Crane Operations

    Furnace Area Human Presence Detection

    Machining Centre Safety Monitoring

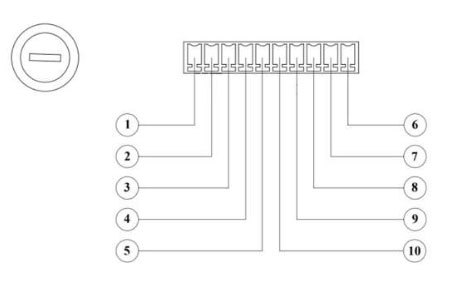

    Connection Diagram of our Presence Detection Sensor

    PinConnectionI/O
    1xx
    2xx
    30 VDCInput
    4+ 24V DC
    5Relay 1 = NCOutput Relay 1
    6Relay 1 = COM
    7Relay 1 = NO
    8Relay 2 = NCOutput Relay 2
    9Relay 2 = COM
    10Relay 2 = NO

    FAQ's of Human Presence Sensor

    Our Presence Sensor is competitively priced.

    Approximately 5m range

    It works above 100 Lux light

    5 Relay outputs + JSON + TCP/IP for accesing images stored

    135 Deg horizontal, 70 deg vertical

    Height of human, area of interest, Probability of detection

    Our other JM INDUSTRIAL AUTOMATION Products

    Every innovative industrial automation solution of J Mechatronic is focussed on delivering value by solving problems related to flow detection, temperature measurement and condition based monitoring through its reliable and redundant solutions.
